Bendable Solar Panel – Carbon Fiber Design for RV/Marine/Off-Grid Use

Renewable Clean Eneregy Bendable bifacial flexible solar panel carbon fiber Clean Power

1.
2.

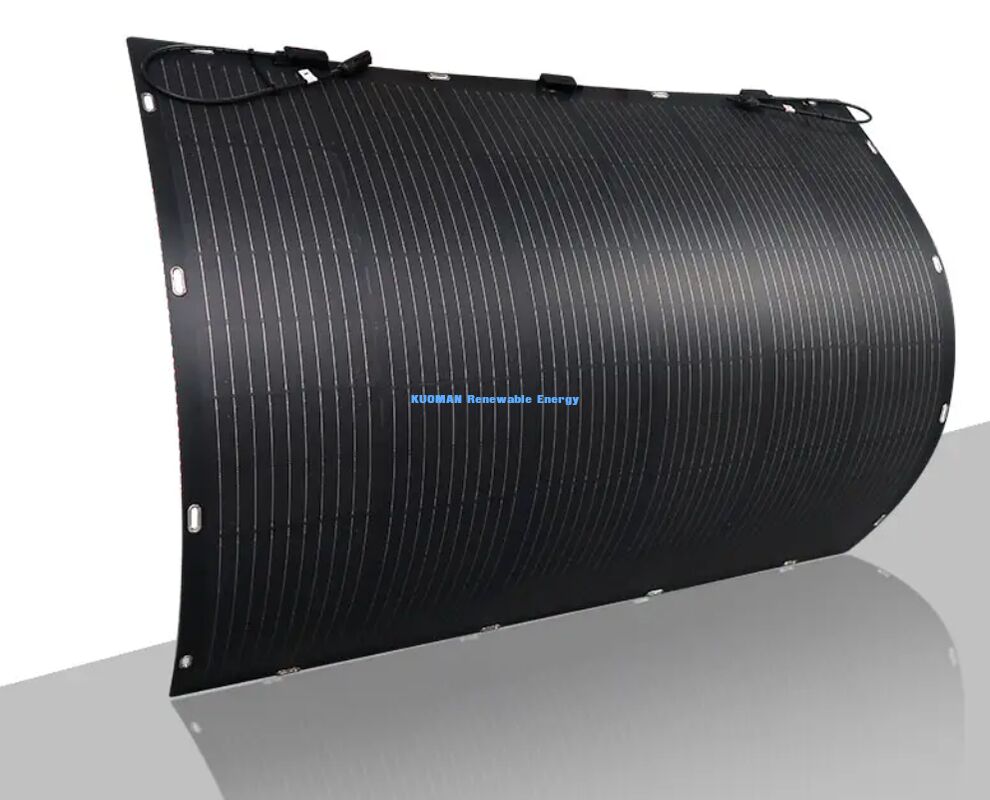

3. Details of 200W flexible solar panel shown:
4. 1.Fully waterproof conjunction box with silicon glue,specially with diode built in toavoid conversed connection;
5. 2. Eyelet with Larger size ,easy to fix ;
6. 3. 10PCS of eyelets left for multiple location to fix;
7. 4.High efficiency solar cell up to 23% ;5.Universal and robust MC4 connector.
8.
9.

Flexible Solar Panel Parameter:

Solar Panel General Information

Brand Name: KUOMAN SOLAR

Model Number: KM FL210W

Panel Type: Ultra-Thin Flexible Monocrystalline Solar Panel

OEM/ODM: Available (Custom branding/design upon request)

Warranty: 1 Year Limited Manufacturer Warranty

2. Material Composition (5-Layer Structure)

Top Layer: FFC (Flexible Fluoropolymer Composite)

Weather-resistant, UV-stable, and anti-reflective coating.

Encapsulation: Dual EVA (Ethylene-Vinyl Acetate) Layers

Superior adhesion and protection against moisture/impact.

Core: High-Efficiency Monocrystalline Silicon Cells

Cell Size: 182mm × 182mm (large-format for higher output).

Backing: Carbon Fiber Substrate

Lightweight yet rigid for durability and flexibility.

3. Electrical & Performance

Rated Power: 210W

4. Physical Attributes

Dimensions: 115cm (L) × 98.5cm (W)

Compact design for versatile installations.

Thickness: ~2-3mm (Ultra-thin, bendable up to 30° curvature).

Weight: Approximately 2.9kg (Lightweight for mobile applications).

Color Options: White (non-reflective) / Black (aesthetic finish).

5. Durability & Certifications

Weather Resistance: IP65-rated (Waterproof, dustproof).

Temperature Range: -40°C to +85°C (Operational).

Bendability: Can flex repeatedly without cell damage.

Hail Rating: Withstands 25mm hail at 23m/s.

Panel Efficiency: ≥23% (Industry-leading for flexible panels)

Optimal Applications:

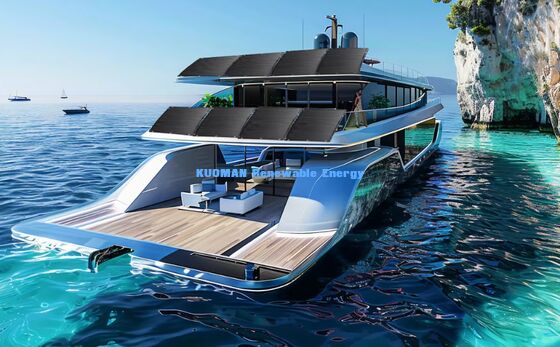

• RV/Caravan roofs, Marine (boats/yachts), Curved surfaces, Portable systems.

Target Markets

• Marine: Corrosion-resistant for saltwater environments.

• Off-Grid: Portable power for camping/backpacking.

• Urban Use: Balcony/curved rooftop installations.

•

FAQ

1.Can you supply OEM &ODM service ?

A:Yes, only MOQ regards.

2.What's kind of certificates and patent your products have acquired ?

A:1) Full of CE,ROHS,FCC,PSE,UL.2)Utility model of China and Appearance Patent of Europe.

3.Can I test the sample?

A:Yes,we can supply one sample to test with charge,and refunded of product itself on mass order.
