Thông tin chi tiết sản phẩm:
|
| Công suất danh nghĩa: | 144A | Năng lượng danh nghĩa: | 215kWh |
|---|---|---|---|
| Điện áp danh định: | 400V(320~460V) | Nhiệt độ hoạt động: | -20°C đến 50°C |
| Vòng đời: | 10.000 chu kỳ | Dung tích: | 100 KWh |
| Giao thức truyền thông: | Modbus, CAN và Ethernet | Sản lượng điện: | 250 kW |
| Cân nặng: | 1200 kg | Hiệu quả: | 90% |
| Điện áp định mức: | 768v | Kích thước: | 1150 mm x 755 mm x 1550 mm |
| Làm nổi bật: | 1.106MWh container ESS with RS485,Integrated container ESS with TCP/IP,Microgrid backup power with remote monitoring |
||

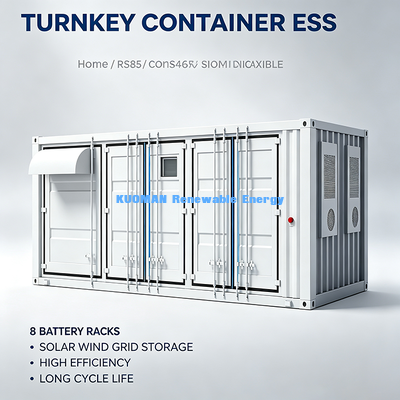

IP54 container energy storage system 500kW/1.106MWh high voltage ESS with intelligent air cooling & full BMS, wide temperature range -30℃~55℃, scalable for commercial, industrial, solar grid energy storage projects.
Our ESSC0500A-1106 containerized energy storage system is a standardized outdoor integrated energy storage cabinet built for large-scale renewable energy matching, peak shaving, grid stabilization and backup power supply. Adopting IP54 dustproof & waterproof enclosure, independent air duct intelligent thermal management, complete BMS & EMS communication system, it supports extreme ambient operation and fast turnkey deployment for global energy storage projects.
| Parameter Item | Value |
|---|---|
| DC Parameters | |
| Battery Capacity | 1.106 MWh |
| Battery Rack Quantity | 8 sets |
| BMS Communication | RS485 / CAN |
| DC Voltage Range | 600 ~ 850 V |
| AC Parameters | |
| Rated AC Power | 500 kW |
| Max AC Power | 550 kW |
| Rated AC Current | 722 A |
| Max AC Current | 800 A |
| DC Current Component | ＜0.5% |
| THDi | ＜3% (under rated power) |
| Rated Grid Voltage | 400 V |
| Allowable Grid Voltage | 320 ~ 460 V |
| Grid Frequency | 50 / 60 Hz, adjustable range 45~55Hz / 55~65Hz |
| Power Factor | 1 Lagging ~ 1 Leading |
| Isolation Method | No Isolation |
| General Hardware Data | |
| Ingress Protection Grade | IP54 |
| Fire Extinguishing System | Supported |
| Full Power Continuous Running Time | 2 Hours |
| Operating Temperature | -30℃ ~ 55℃ |
| Overall Dimension (W×D×H) | 12192 × 2438 × 2896 mm |
| Total Weight | 3.5 Tons |
| EMS Communication Interface | RS485, TCP/IP |
| PCS Cooling Mode | Intelligent Air Cooling with Temperature Control |
| Battery Cooling Mode | Air Conditioning Cooling |
| Max Working Altitude | 4500m (power derating over 3000m) |
| Relative Humidity | 0 ~ 95% Non-Condensing |
A: Our ESSC0500A-1106 adopts IP54 standard enclosure, which can effectively block dust, splashing rainwater, suitable for long-term outdoor installation.
A: Under rated 500kW full power output, the system can run continuously for 2 hours with 1.106MWh energy capacity.
A: Yes, the operating temperature range covers -30℃ to 55℃, built-in heating & air conditioning dual cooling system, normal operation in cold alpine regions.
A: BMS uses RS485/CAN; EMS remote monitoring supports RS485 and TCP/IP, compatible with most mainstream energy management platforms.
